In this section, actual experimental datasets, schematic of constitutive models, and main results are provided. Please refer to the notebooks (MCMC_FMG_PostProcessing.ipynb and MCMC_FMM_PostProcessing.ipynb) and the paper for more figures and comprehensive description.

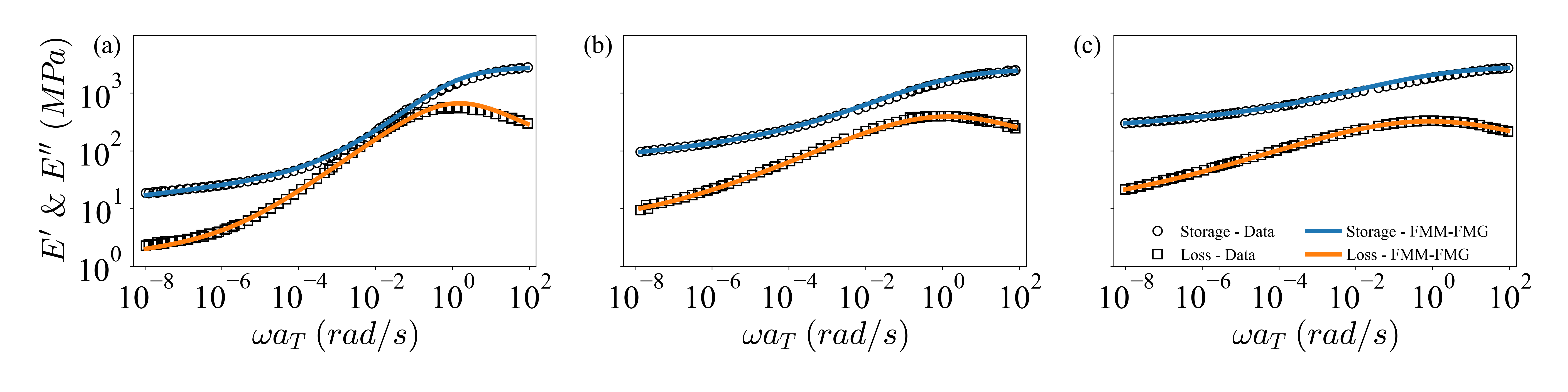

Figure 1: Experimental dataset for (a) 20, (b) 30, and (d) 40 HSWF
Figure 2: Constitutive models: FMG–FMG and FMM–FMG
Figure 3: Graph representation of the Bayesian calibration framework for the FMM–FMG model

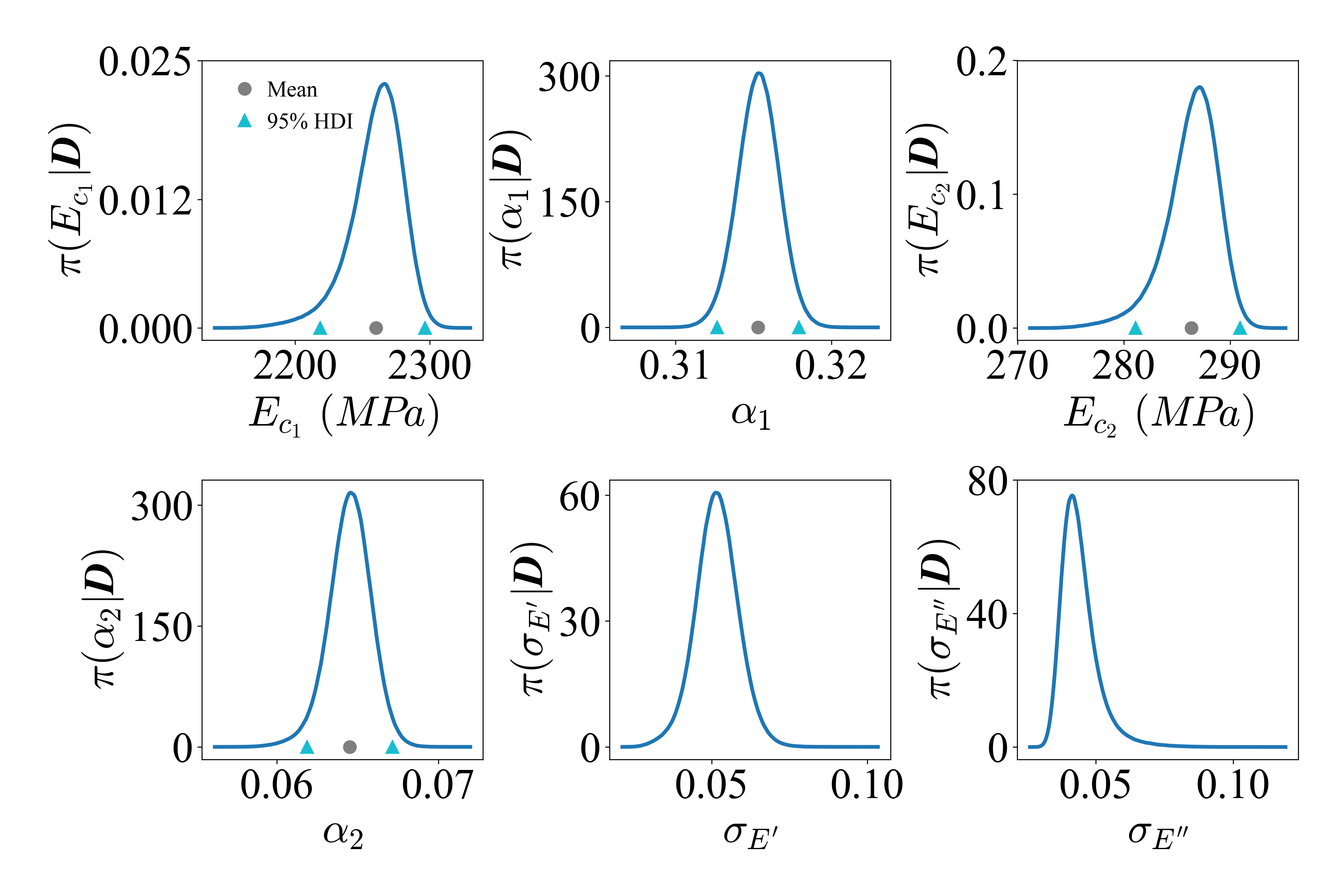

Figure 4: Kernel density estimates of the inferred marginal posterior distributions for model parameters for the 30% HSWF, 0.5 wt.% xGnP

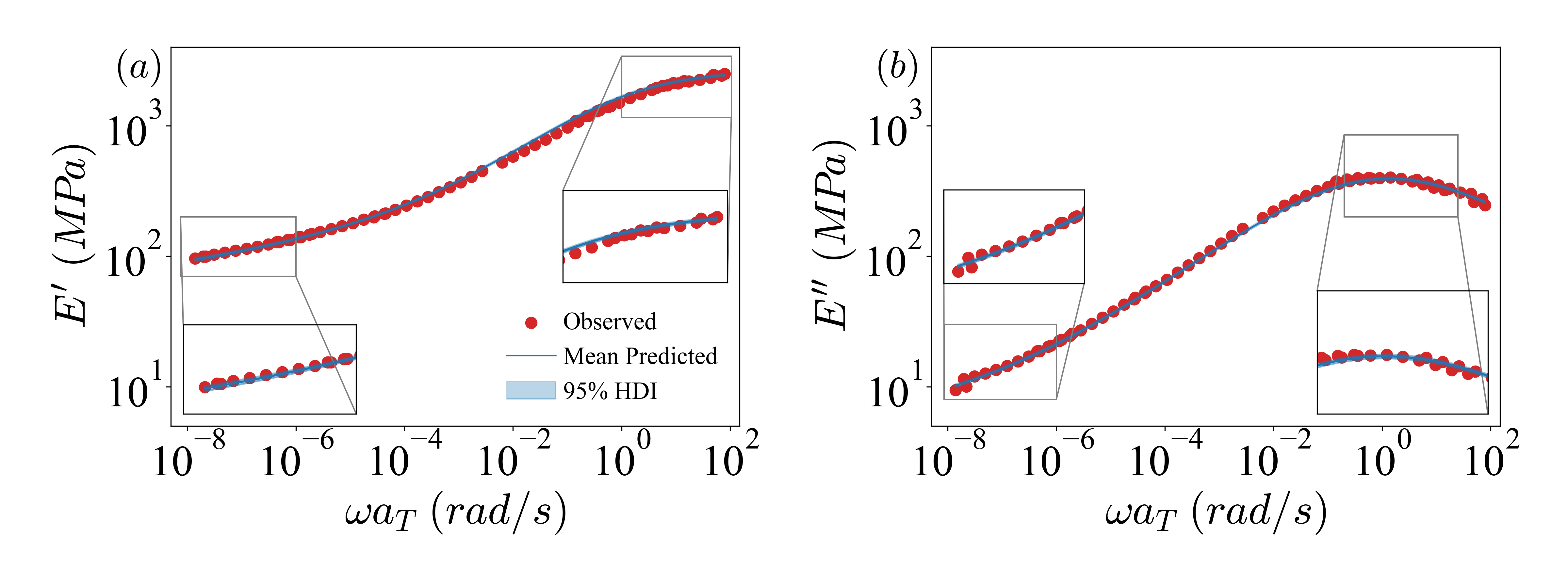

Figure 5: Forward uncertainty propagation to the FMM–FMG model
