Results Summary

In this section, a brief overview of the results corresponding to the LSA and GSA are provided. For more comprehensive results presentation and in-depth discussion, please refer to the paper linked to this repository.

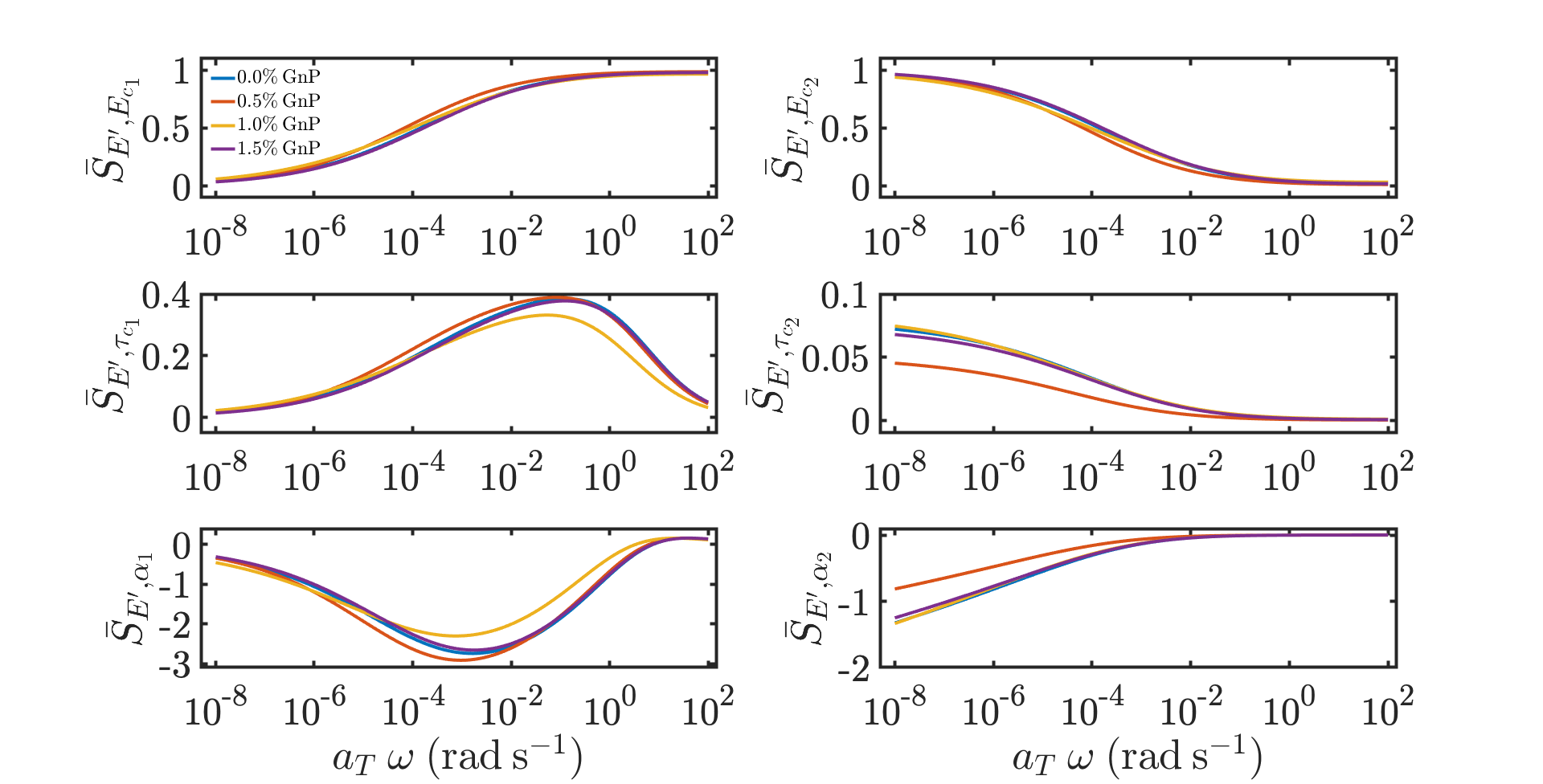

Variation of the averaged normalized LS indices of the FMG-FMG storage modulus (20% HSWF nanocomposite systems)
Figure 1: Variation of the averaged normalized LS indices of the FMG-FMG storage modulus (20% HSWF nanocomposite systems)

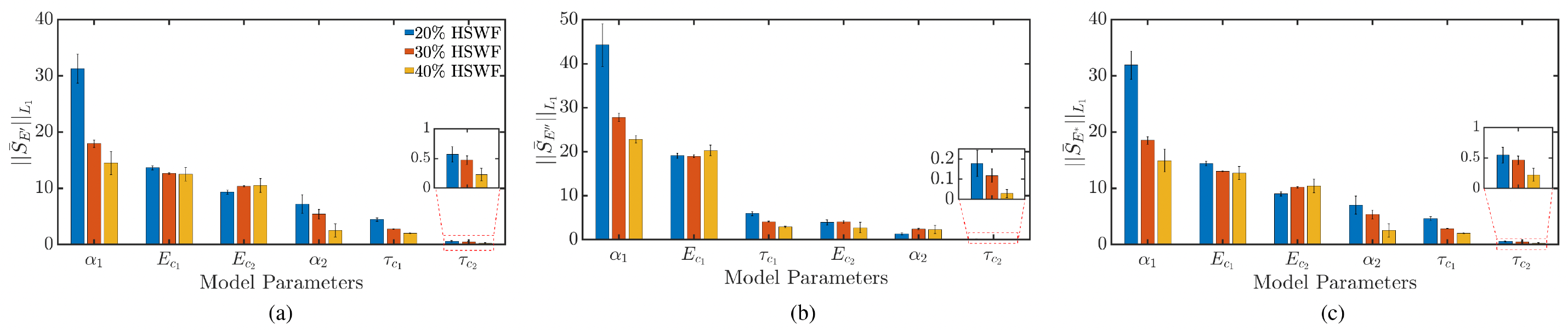

Averaged L1-norm of the normalized local sensitivity indices of all moduli w.r.t. each FMG-FMG model parameter. (a) Storagemodulus, (b) Loss modulus, and (c) Complex modulus
Figure 2: Averaged L1-norm of the normalized local sensitivity indices of all moduli w.r.t. each FMG-FMG model parameter. (a) Storagemodulus, (b) Loss modulus, and (c) Complex modulus

Variation of the averaged normalized LS indices of the FMG-FMG storage and loss moduli (20% HSWF nanocomposite systems). (a) Storage modulus, (b) Loss modulus.
Figure 3: Variation of the averaged normalized LS indices of the FMG-FMG storage and loss moduli (20% HSWF nanocomposite systems). (a) Storage modulus, (b) Loss modulus.

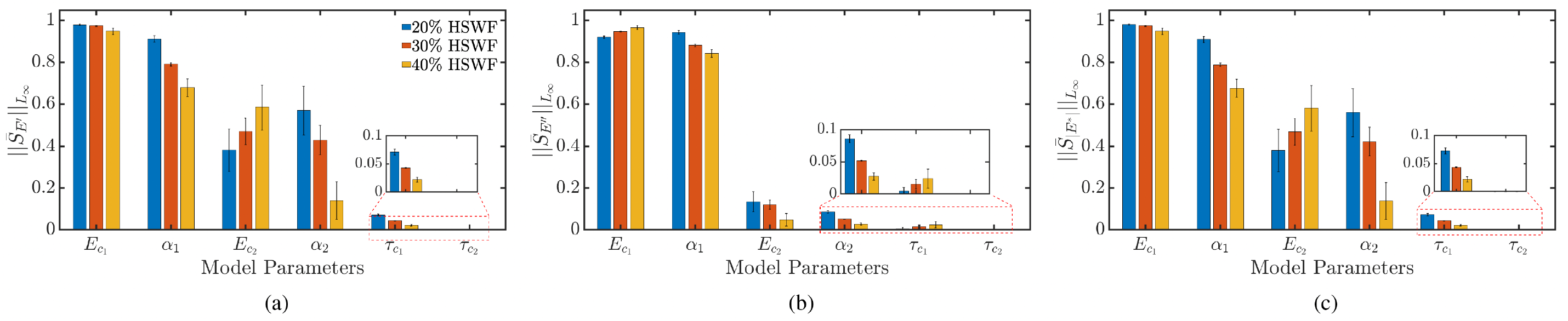

Averaged \(L_{\infty}\)-norm of the first-order sensitivity indices of all moduli w.r.t. each FMG-FMG model parameter.
Figure 4: Averaged \(L_{\infty}\)-norm of the first-order sensitivity indices of all moduli w.r.t. each FMG-FMG model parameter.
